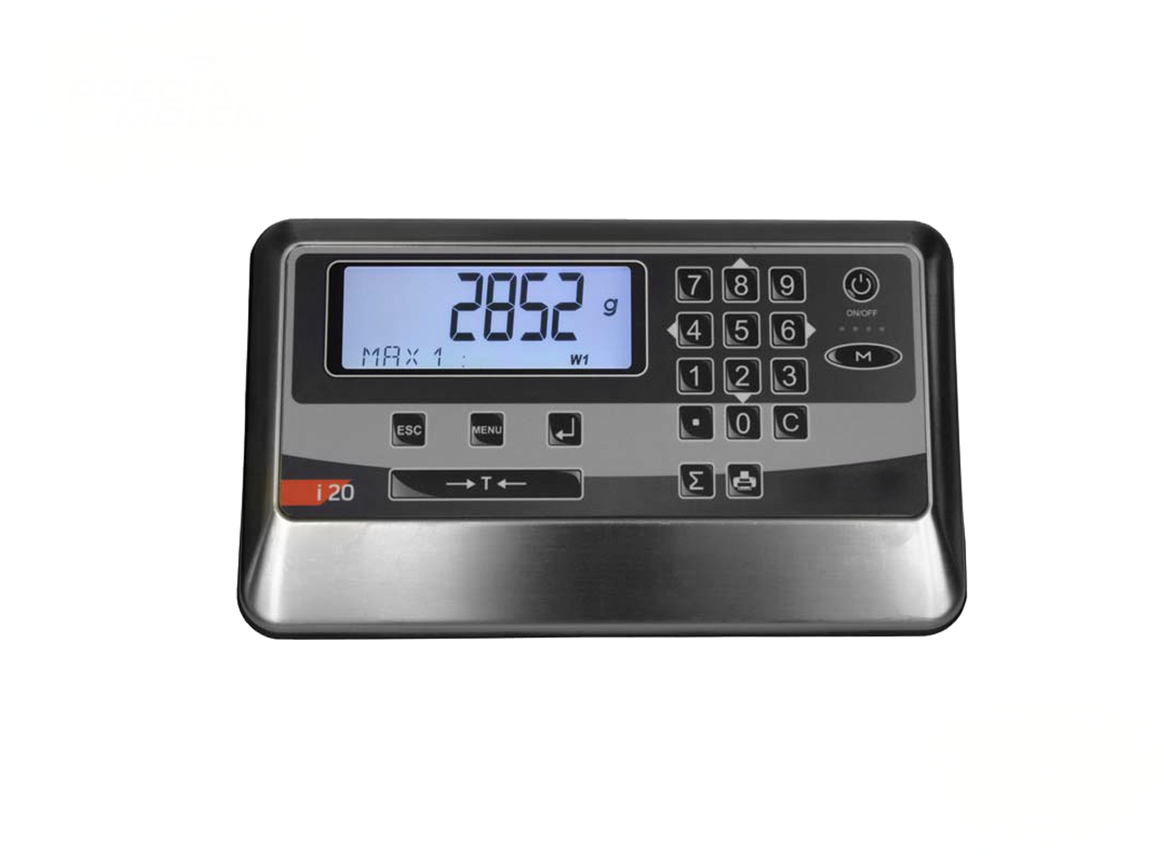

Viktindikator i20

• Simple weighing
• Counting
• Group counting
• Control +/-
• Calculation
• HOLD function

Temperature range

• Operating – 15 °C / + 60° C*
• Storage – 20 °C / + 65 °C

• Class ML III
• Division (μV) ML 0.5v
• Single range ML 6000, HML 30000
• Dual range ML 2 x 6000
• Load cells
  • Power supply 5 V
  • RMin 43 Ω
  • RMax 1245 Ω

Two modes of external power supply jumper selectable:

• • AC 90/230 V, 50/60 Hz
  • DC 9/30 V

Maximum power consumption 1.4 W

• Internal battery power (option)
• Operational duration evaluated with a single load cell weighing infrastructure:
  • No backlighting 48 h
  • Minimum backlighting 30 h
  • Average backlighting 22 h
  • Maximum backlighting 16 h
• Charging time
  • From 0 to 100 % 8 h
  • From 80 to 100 % 4 h

RS 232 link

• Printer
• Reference scale for parts counting
• Remote weight display

• Platform scales R1 Access

• AC power cord (3m long)
• Universal bracket
• Universal bracket
• Dust cover

• Internal battery and plug-in power cable (3m long)

Storing on ìSD card

• DSD memory 300,000 records for trade use
• Parameter and file storage

• USB for PC connection
• 2nd RS 232 / RS 485 link
• Ethernet

Input/output interface(with galvanic isolation)

• Input:
  • 2 channels ..8 to 30 V DC
• Output:
  • 4 channels..48V / 100 mA

• On platform
• Panel mounting
  • Cut out: 252 x 148 mm
  • Thickness: 10 mm max.
