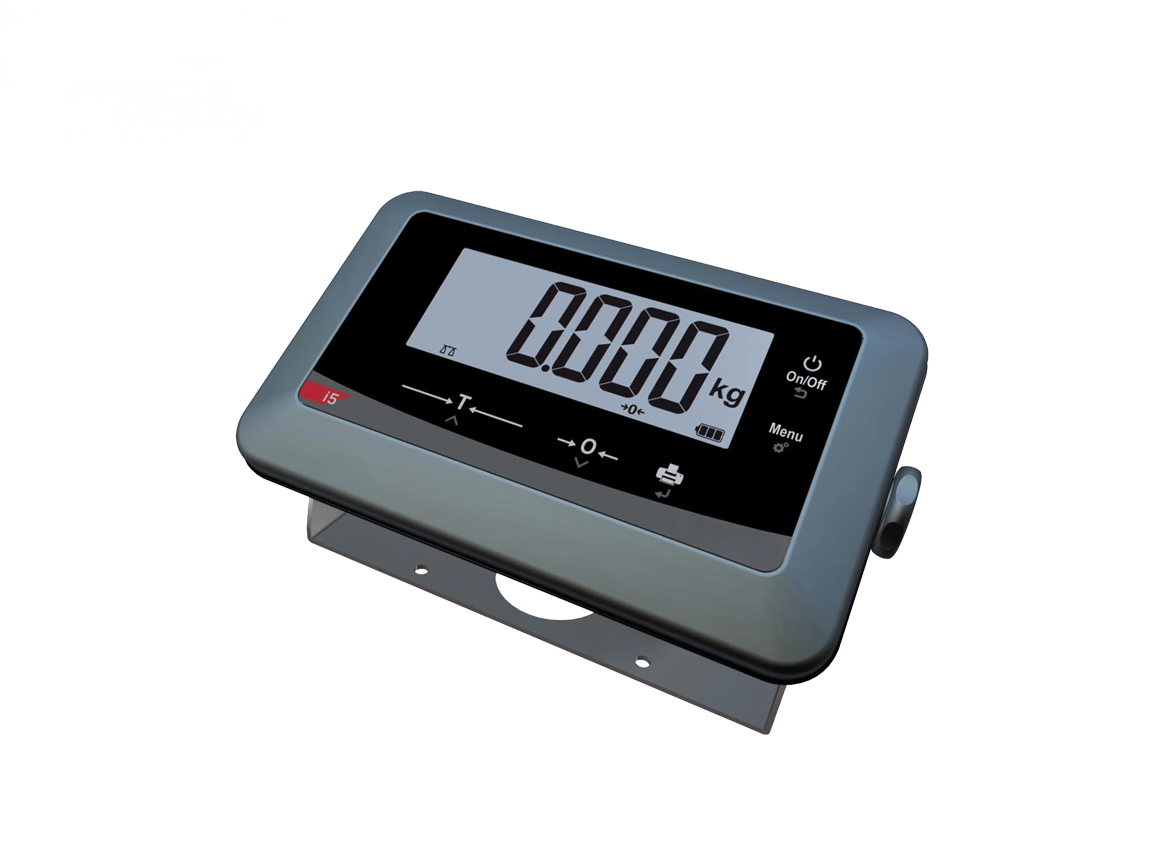

Viktindikator i5

The i5 indicator has been designed to meet all your requirements for so-called simple weighing applications and in harsh industrial environments (protection from dust and water projections in compliance with the IP66 index).

Läs mer

Priority has been given to the ease of use and installation. With the supplied accessories, mounting is fast on all PRECIA MOLEN platforms. Such accessories are also perfectly adapted to renewal operations.

Kontakta oss så berättar vi mer

036-31 42 00
support@flintab.se

Produktinformation

Applications

Simple weighing
Counting
Animal weighing
HOLD function

Physical features

Dimensions (L x h x p): 202 x 122 x 92 mm
Weight 800 g

Environment

Operation − 10 °C / + 40° C
Storage − 20 °C / + 60

Power Supply

Mains supply:
- Voltage: 110-240 V
- Frequency: 50-60 Hz
- Consumption: 0,2 A
Internal battery supply (option)
- Autonomy:
  Backlighting off: 55 h
  Maximal backlighting: 20 h
- Load time
  From 0 to 100 %: 7 h
  From 0 to 80 %: 4 h

Accessories Supplied

Mains supply cable (3 m length)
Universal support
Protection shell

Metrology

Class: ML III / IV, HML: –
Division (μV): ML 0,5, HML: –
Simple capacity: ML 3 000, HML 30 000
Double capacity: ML 2 x 3000, HML –
- Load cells
Power supply: HML 5 V
RMin: HML 87.5 Ω
RMax. HML 1 245 Ω

Communication

RS 232 or USB link

Dokument

Data sheet i5 indicator

Ladda ner

Data sheet i5, i20 and i25 indicator

Ladda ner
